# Chain link

A chain link represents a link to an external chain account that has been created by the user to connect their Desmos profile to such accounts. These links can be created either offline or using IBC following the specification described inside the "Create a chain link" section.

# Contained data

Here follows the data contained inside a chain link.

# User

Represents the Desmos address to which the chain link is associated.

# Address

Contains the data of the external chain address. Currently, it can be of two different types:

  • Bech32Address to represent Bech32-based addresses
  • Base58Address to support Base58-encoded addresses

# Proof

Contains the data proving the ownership of the external chain account.

# PubKey

Contains the data of the public key associated with the external address that is used to verify the ownership of such address.

# Signature

Represents the hex-encoded signature of the plain text that has been created signing it with the private key associated with the provided public key.

# PlainText

Represents the plain text value that has been signed with the private key associated with the address in order to get the signature.

# ChainConfig

Contains the details of the external chain to which the link is associated.

# Name

Contains the human readable chain name.

# CreationTime

Represents the time in which the link has been created.

# 1. Create the ownership proofs

When creating a chain link, you need to provide two different proofs to make sure the link is valid:

  1. The proof that you own the external chain account
  2. The proof that you own the Desmos profile to which you want to link

In order to create a proof, the following steps are needed:

  1. Get a generic plain text data to sign
  2. Sign the plain text data using your private key
  3. Assemble the signature, plain text and public key into a Proof object.

Here is an example of a valid proof object encoded using JSON:

{
  "pub_key": {
    "@type": "/cosmos.crypto.secp256k1.PubKey",
    "key": "A58DXR/lXKVkIjLofXgST/OHi+pkOQbVIiOjnTy7Zoqo"
  },
  "signature": "ecc6175e730917fb289d3a9f4e49a5630a44b42d972f481342f540e09def2ec5169780d85c4e060d52cc3ffb3d677745a4d56cd385760735bc6db0f1816713be",
  "plain_text": "cosmos15uc89vnzufu5kuhhsxdkltt38zfx8vcyggzwfm"
}

Note that the pub_key field must be encoded using Protobuf and must be compatible with the public key types that are currently supported by Cosmos. You can see a list of such key types here (opens new window).

Once you have created the two ownership proofs, you are now ready to create the link. This can be done in two ways:

  1. Using IBC
  2. Usign a chain message

# Using IBC

This is the way that you want to use when integrating the Desmos connection from your chain.
To implement the IBC capability of connecting an external account to a Desmos profile, the x/profiles module supports the following packet data type:

// LinkChainAccountPacketData defines the object that should be sent inside a
// MsgSendPacket when wanting to link an external chain to a Desmos profile
// using IBC
type LinkChainAccountPacketData struct {
    // SourceAddress contains the details of the external chain address
    SourceAddress *types.Any `protobuf:"bytes,1,opt,name=source_address,json=sourceAddress,proto3" json:"source_address,omitempty" yaml:"source_address"`
    // SourceProof represents the proof of ownership of the source address
    SourceProof Proof `protobuf:"bytes,2,opt,name=source_proof,json=sourceProof,proto3" json:"source_proof" yaml:"source_proof"`
    // SourceChainConfig contains the details of the source chain
    SourceChainConfig ChainConfig `protobuf:"bytes,3,opt,name=source_chain_config,json=sourceChainConfig,proto3" json:"source_chain_config" yaml:"source_chain_config"`
    // DestinationAddress represents the Desmos address of the profile that should
    // be linked with the external account
    DestinationAddress string `protobuf:"bytes,4,opt,name=destination_address,json=destinationAddress,proto3" json:"destination_address,omitempty" yaml:"destination_address"`
    // DestinationProof contains the proof of ownership of the DestinationAddress
    DestinationProof Proof `protobuf:"bytes,5,opt,name=destination_proof,json=destinationProof,proto3" json:"destination_proof" yaml:"destination_proof"`
}
Field Type Description
SourceAddress AddressData Contains the details of the external address to be linked
SourceProof Proof Contains the data to verify the ownership of the external address
SourceChainConfig ChainConfig Contains the data of the external chain to be linked
DestinationAddress string Desmos address of the profile to which link the external address
DestinationProof Proof Proof of ownership of the Desmos profile

Note that the SourceAddress field must one of the currently supported types:

  • Base58Address if the external address is represented by the Base58 encoded public key of the account
  • Bech32Address if the external address is Bech 32 encoded

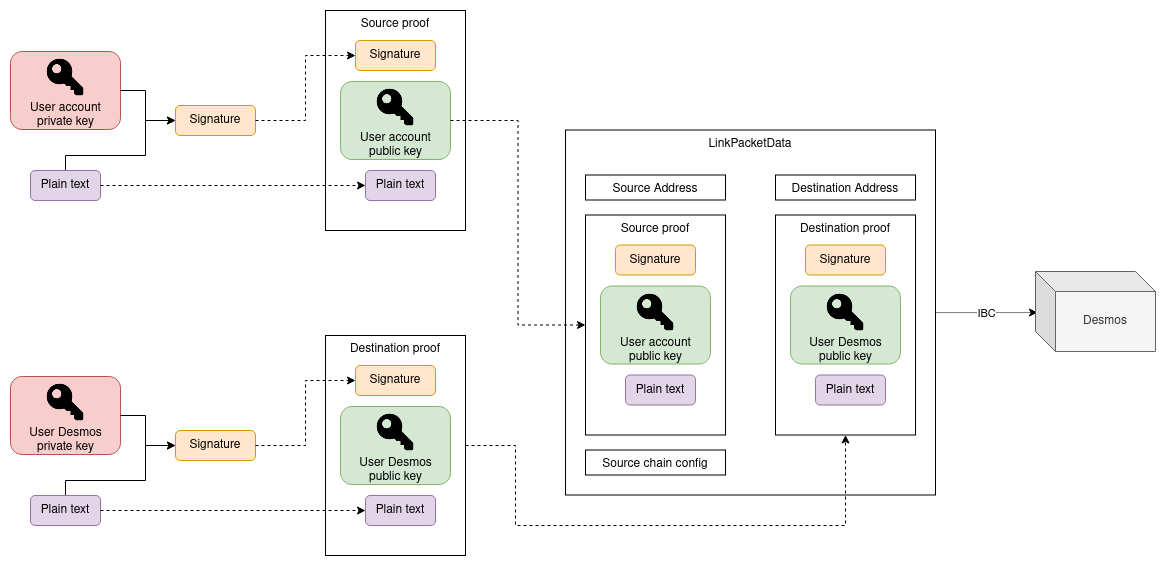

The overall view is the following:

# Using a chain message

In the case you don't want or cannot integrate IBC into your project, you can always rely on MsgLinkChainAccount to link an external profile to a Desmos profile:

// MsgLinkChainAccount represents a message to link an account to a profile.
type MsgLinkChainAccount struct {
	// ChainAddress contains the details of the external chain address to be
	// linked
	ChainAddress *types.Any `protobuf:"bytes,1,opt,name=chain_address,json=chainAddress,proto3" json:"chain_address,omitempty" yaml:"source_address"`
	// Proof contains the proof of ownership of the external chain address
	Proof Proof `protobuf:"bytes,2,opt,name=proof,proto3" json:"proof" yaml:"source_proof"`
	// ChainConfig contains the configuration of the external chain
	ChainConfig ChainConfig `protobuf:"bytes,3,opt,name=chain_config,json=chainConfig,proto3" json:"chain_config" yaml:"source_chain_config"`
	// Signer represents the Desmos address associated with the
	// profile to which link the external account
	Signer string `protobuf:"bytes,4,opt,name=signer,proto3" json:"signer,omitempty" yaml:"signer"`
}
Field Type Description
ChainAddress AddressData Contains the details of the external address to be linked
Proof Proof Contains the data to verify the ownership of the external address
ChainConfig ChainConfig Contains the data of the external chain to be linked
Signer string Desmos address of the profile to which link the external address, which must be the signer of the transaction
# Using the CLI

Note that you can compose this message using the desmos tx profiles link-chain command.
